Description

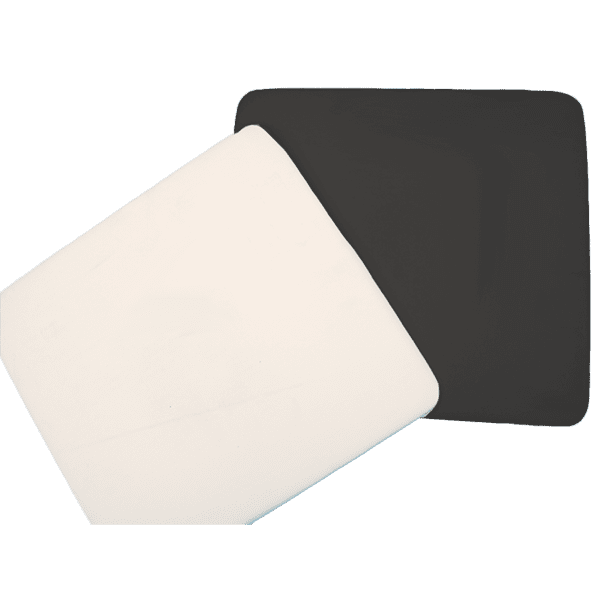

Gala Series Replacement Seat Pad
Directions for the Seat Pad
SEAT PAD
- Loosen plate screw and swivel plate to the side to release from seat rod.

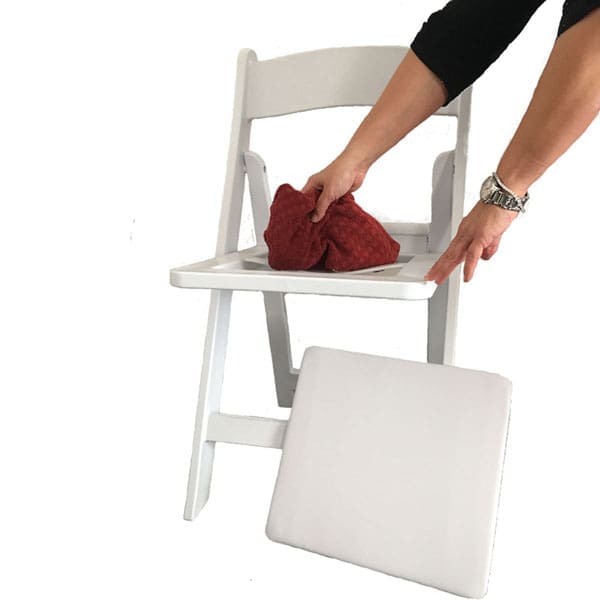

- Lift the seat pad up and back so it moves away from the front of the frame where the tongue holds the seat pad to the frame.
- Replace pad, swivel its plate over seat rod and tighten the screw.
SEAT FRAME
Parts needed:
- Seat Frame
- Seat Rod
- Cap Nut.
Remove the seat Pad. Using 2 METRIC Allen keys of the same size break Loc-Tight seal of Seat Rod. Replace Seat Frame. Insert Seat Rod, use small amount of Loc-Tight on Cap Nut when attaching.
If you cannot get the Seat Rod loosened, cut through the Seat Rod with a hacksaw and replace the Seat Rod and Cap Nut.
Replace the Seat Pad
