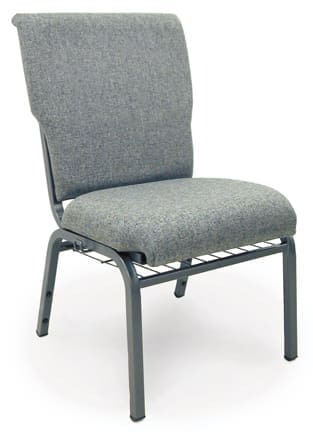

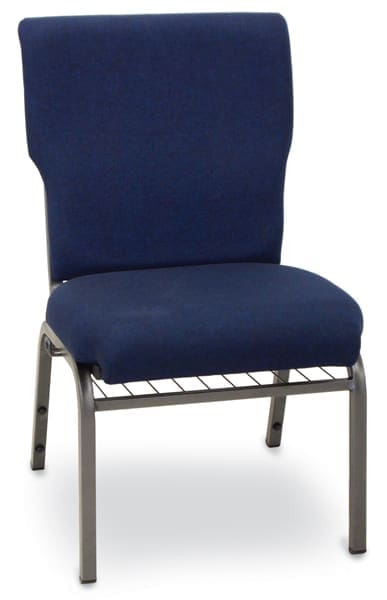

The Auditorium Stack Chair
Main Frame
Constructed of 18 gauge 1" square steel tubing. Braces are 3/4" square tubing.
- Frame is mandrel bent and welded at two points each side.

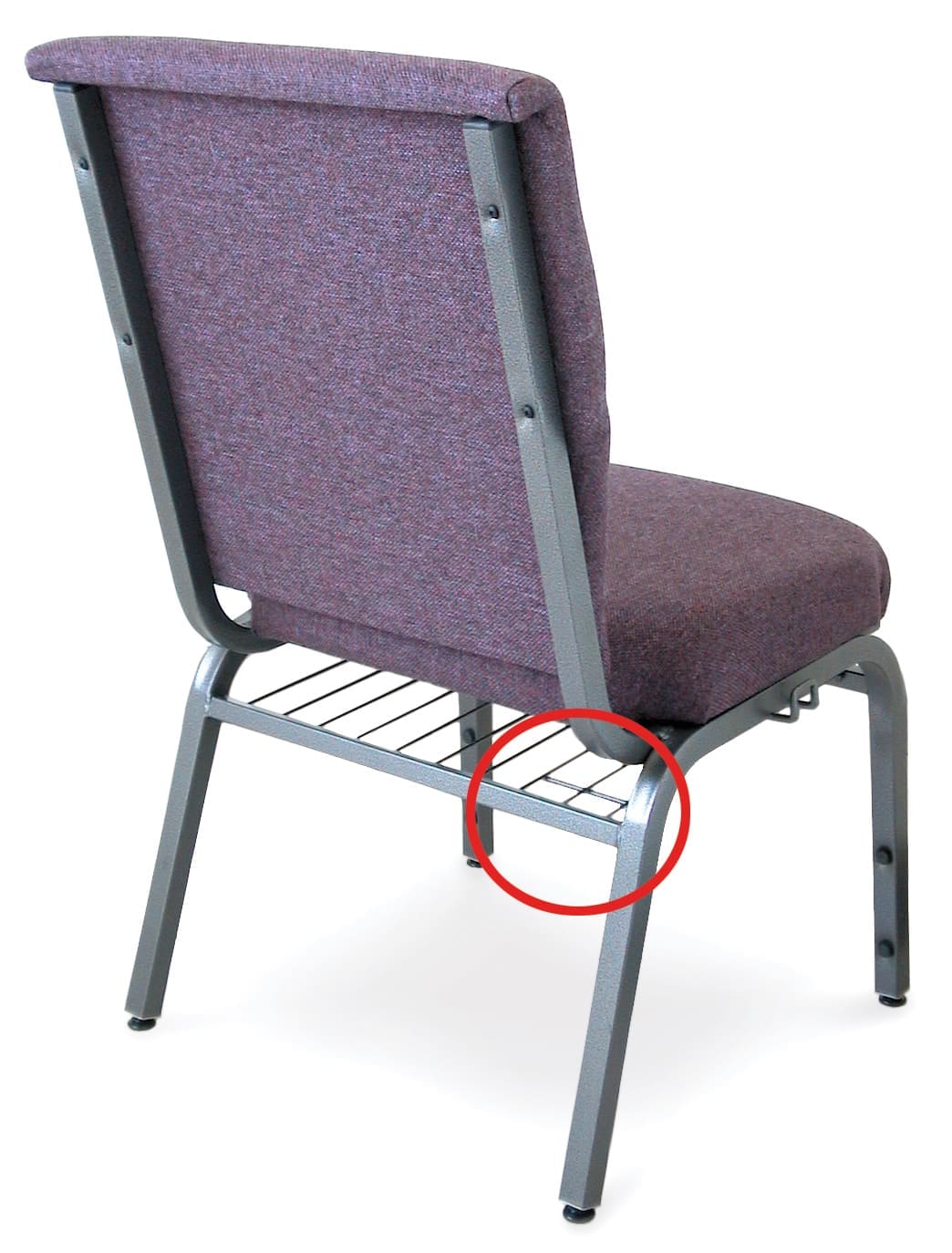

- Storage rack underneath is 1/8" wire welded on 1 3/4" centers with holder for small sacramental glasses.
- Frame is finished in baked on powder coat for extreme commercial use.
Cushion Platforms
- Seat and back platforms are 3/8" hardwood plywood to which upholstery is stapled.
- Each platform is fastened to the frame with four #10 screws.
- Back platform is tapered at the waist to allow stacking without upholstery wear.
Padding and Upholstery
- Seat padding is comprised of 2 3/4" virgin polyurethane base pad with a foam density of 1.6 lb/cf. Back padding is 1 1/2" virgin
polyurethane foam sculpted with 1 1/4" lumbar pad.
- Fabric upholstery is a backed, heavy-hand Polyolefin fiber which is stapled to padded platforms. Polyolefin fabric is strong, color fast and resistant to stains and odors.
- Vinyl upholstery is a superior leather alternative which is strong, durable and mildew resistant.
Chair Glides and Stacking Buttons
Glides are injection molded polyethylene with half circle profile. Stacking buttons allow stacking up to 8 high
with no marring.
Weight and Dimensions
- Can be stacked 8 high safely for storage.
- 20" W seat
- Weighs: 18.5 lbs.
Guarantee
Full 3 year warranty against upholstery seam failures and frame damage due to materials and workmanship under normal use. McCourt Manufacturing will repair or replace (at our option) at no charge; customer assumes all freight charges

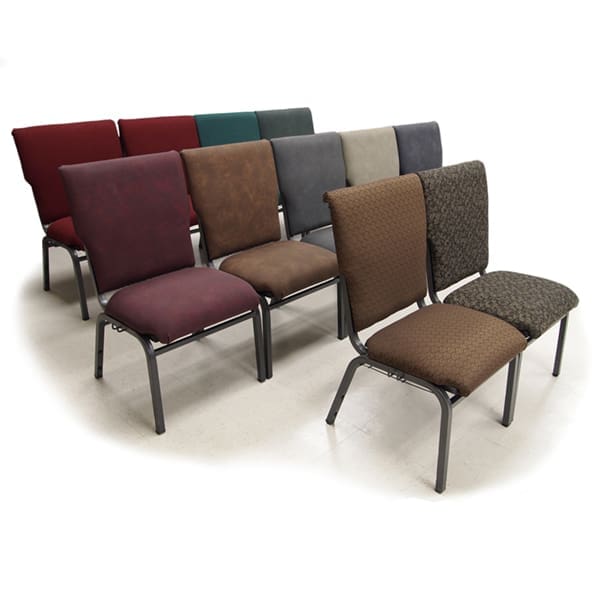

Color options are limited. Please contact us for more information.
